Stator Coil Inserting Machine Touchscreen PLC Controlled ≤ 70mm Tooling Travel
-
Vurgulamak
PLC controlled stator coil inserting machine
,stator winding machine with touchscreen
,70mm tooling travel stator inserter
-
İsimStator Bobin Ekleme Makinesi / Dokunmatik Ekran / PLC Kontrollü
-
Uygun Tel0,2~1,2 mm
-
hizmetlerimiz12 ay garanti süresi
-
Takım seyahatiMaks. 70mm
-
Renkturuncu/beyaz
-
Stator Kimliği110-210mm
-
Stator dış çapı175-300mm
-
Takım seyahati≤70mm
-
Menşe yeriÇin
-
Marka adıSMT
-
SertifikaISO / SGS Audit, CE
-
Model numarasıSMT-QX08
-
Min sipariş miktarı1 takım
-
FiyatAnlaşılabilir
-
Ambalaj bilgileriSızdırmazlıklı Kontrplak Kutu.
-
Teslim süresi29-55gün
-
Ödeme koşullarıT/T,L/C
-
Yetenek temini1 adet / 29-55gün

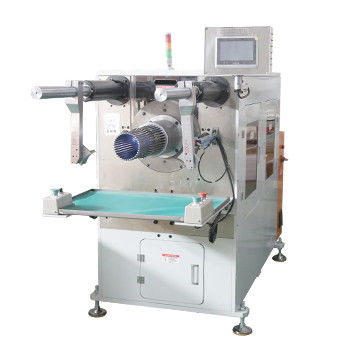

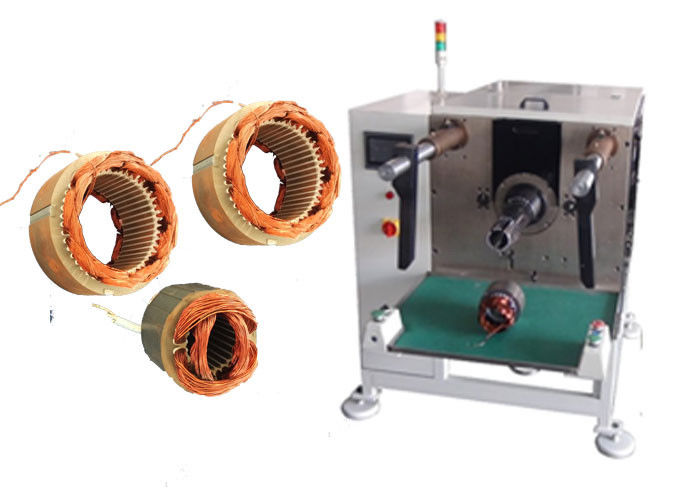

Stator Coil Inserting Machine Touchscreen PLC Controlled ≤ 70mm Tooling Travel
This advanced stator coil inserting machine features touchscreen PLC control with ≤70mm tooling travel, designed for efficient motor production.
- Automatically pulls static coil and paper into static slots in one operation
- Touchscreen interface for parameter modification with automatic paper feed mechanism
- Steel plate welded construction for exceptional stability with ergonomic oblique horizontal structure
- Adjustable speeds, patterns, and interval paper feeding for versatile operation
- High-quality replaceable molds for various electric engine statics production
| Model | QX08 |
|---|---|
| Stator I.D. | 110-210mm |
| Stator O.D. | 175-300mm |
| Stack Height | ≤250mm |
| Tooling Travel | ≤70mm |
| Appropriate Wire Diameter | 0.2-1.2mm |
| Slot number range | 8-48slot |
| Power Supply | 380V/50/60Hz 4Kw |
| MOQ | 1 set |
| Machine dimension | (L)1000*(W)2000*(H)2000mm |
Ideal for various motor production including new energy automobile motors, servo motors, generators, three-phase motors, pump motors, compressor motors, and household appliance motors. Our technology excels in stator and rotor core assembly, slot insulation, auto winding, inserting, fusing, and resin impregnation.
We prioritize product quality and service to enhance your global market competitiveness. Whether you need machines, components, or OEM products, we are your reliable partner ready to establish long-term business relationships.
- Innovative technical team provides complete customized solutions
- Specialized after-sale service with door-to-door support
- Extensive domestic and international service network
- 24/7 customer support with multiple communication channels
We offer comprehensive motor manufacturing services including technical consulting, turn-key projects, cost evaluation, manufacturing know-how, and staff training for AC motors, DC motors, and BLDC motors.
Suzhou Smart Motor Equipment Manufacturing Co., Ltd is a high-tech enterprise specializing in motor manufacturing equipment. With 150 employees including 30+ engineers, we operate from a 20,000 sqm facility with advanced production and test equipment. Certified by ISO9001:2000, we provide complete production lines from coil winding to final stator forming for various motor types.
Ürünlerimiz tüm dünyada satılmaktadır. Ürünlerimizin tüm sürecinden emin olabilirsiniz.
